Your current location :Home / Products / Granulation coating series / XL rotary granulator
XL rotary granulator
This machine uses a set of rotating grinding knives to inject the wet material made from the previous process into the stainless steel sieve barrel of the ring grinding knife, thereby producing cylindrical wet particles for shot blasting in the next process. This device can obtain particles of different sizes by replacing the stainless steel sieve cylinder.
13606122988
Details

Application Overview

  This machine uses a set of rotating grinding knives to inject the wet material made from the previous process into the stainless steel sieve barrel of the ring grinding knife, thereby producing cylindrical wet particles for shot blasting in the next process. This device can obtain particles of different sizes by replacing the stainless steel sieve cylinder.

  Wet particles can also be made based on the material and the size of the required spherical particles.


Parameters

Project specifications

Sieve cylinder aperture (mm)

Production capacity (kg/h)

Power (kw)

Overall dimensions(mm) (L×W×H)

250

?0.8~ 2.5

60~200

4

700×500×1230

300

?0.8~2.5

100~400

5.5

880×630×1230

All parameters are for reference only, and our company has the right to make changes based on the material situation without prior notice.

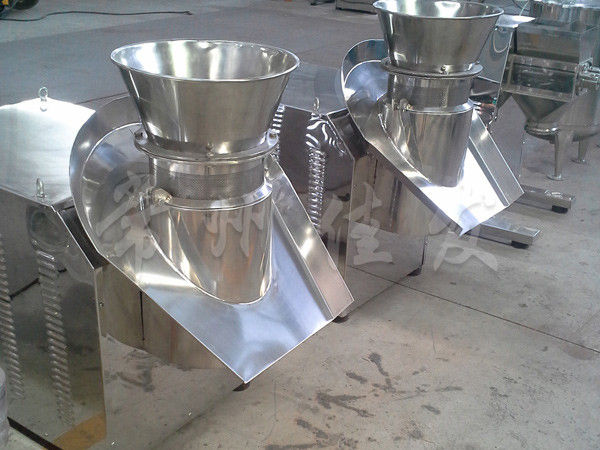

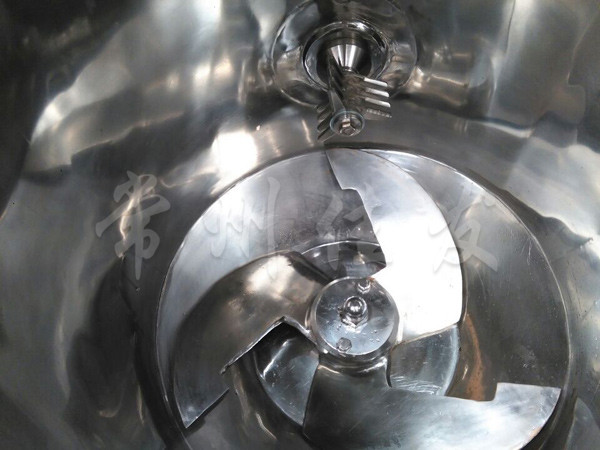

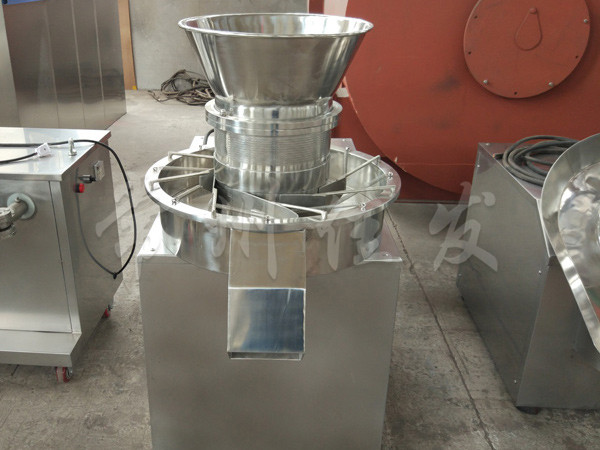

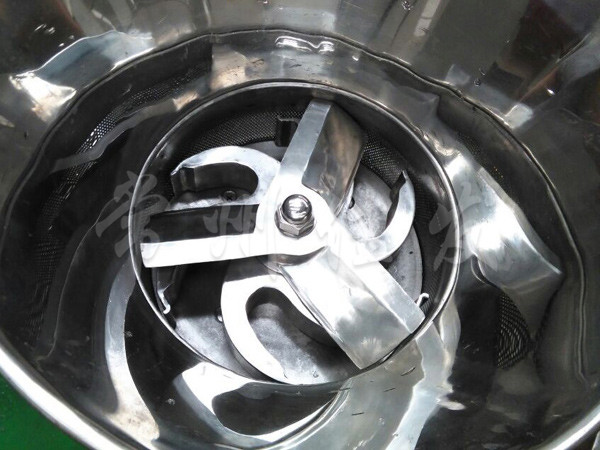

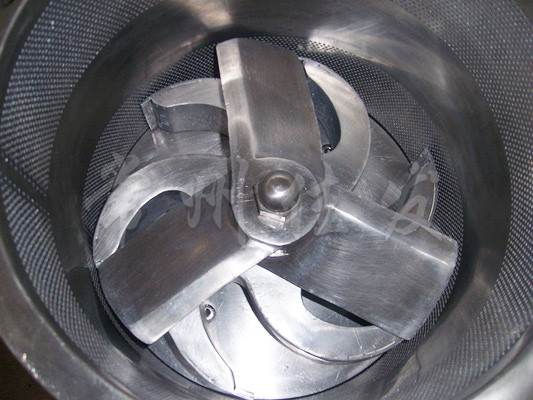

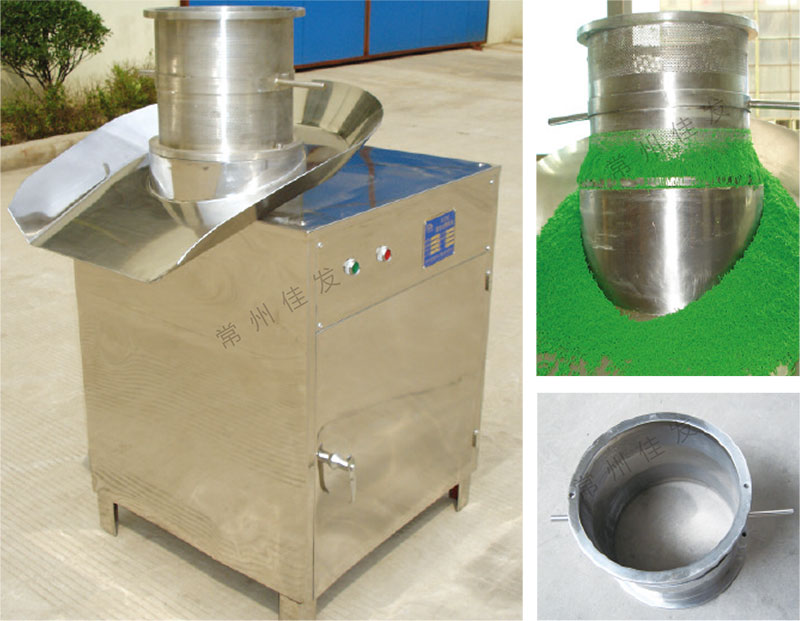

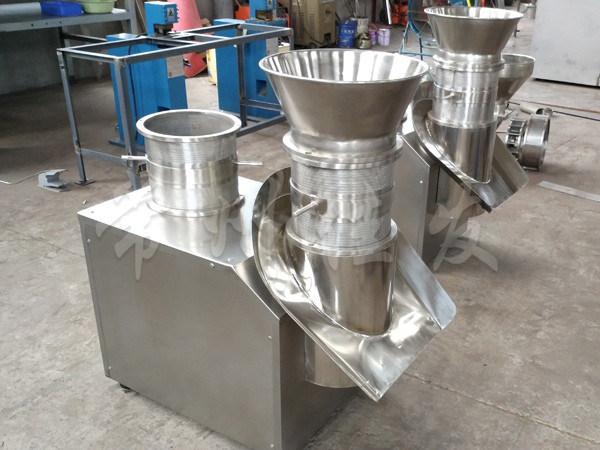

Photos
